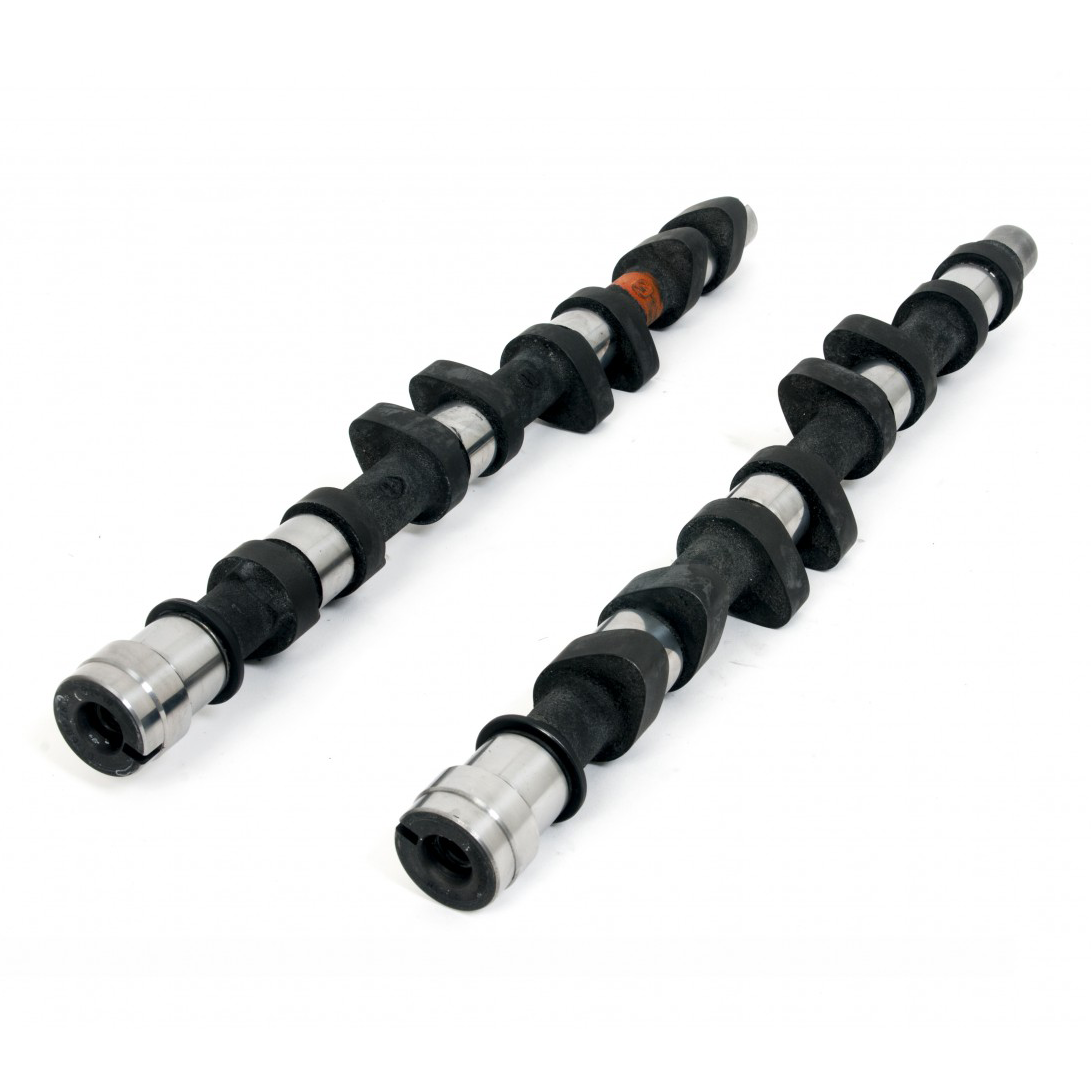

Camshaft – Ultimate Road (Peugeot)
£587.94 Excl. VAT
Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note: Not Suitable For Standard Injection System (No Trigger Fitted On Exhaust Camshaft)
Download:-
Right click the link and select ‘Save link as’ to download.
Click the link to open in a new tab.
- Additional information
- Description
Additional information
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7500 |
| Power Increase | – |
| Duration Inlet | 274° |
| Duration Exhaust | 274° |
| Valve Inlet Lift | .430" 10.92mm |
| Valve Exhaust Lift | .430" 10.93mm |
| Timing Inlet | 31 – 63 |
| Timing Exhaust | 63 – 31 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .098" 2.49mm |
| TDC Exhaust Lift | .098" 2.49mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
| Manufacturer | Peugeot |
| Product Type | Camshaft |
Description
Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note: Not Suitable For Standard Injection System (No Trigger Fitted On Exhaust Camshaft)
Follower bores may require machining to allow the camshaft to rotate.
